TECHNICAL PARAMETER
| Model | T1029-100W | T1029-150W | T1029-200W | T1029-300W |
| Power | 100W | 150W | 200W | 300W |
| Chip | NICHIA / LUMILEDS / CREE | |||
| Lumen | 130-140 lm/W | 130-140 lm/W | 130-140 lm/W | 130-140 lm/W |
| CRI | ≥80 | ≥80 | ≥80 | ≥80 |
| Beam angle | TypeⅡ / TypeⅢ / TypeⅤ | |||
| LED driver |   | |||
| Voltage(V) | 85-265V | 85-265V | 85-265V | 85-265V |
| LED QTY(pcs) | 112pcs | 168pcs | 224pcs | 336pcs |
| IP | 65 | 65 | 65 | 65 |
Size(mm) | 550*320*120 | 650*320*120 | 750*320*120 | 890*320*120 |

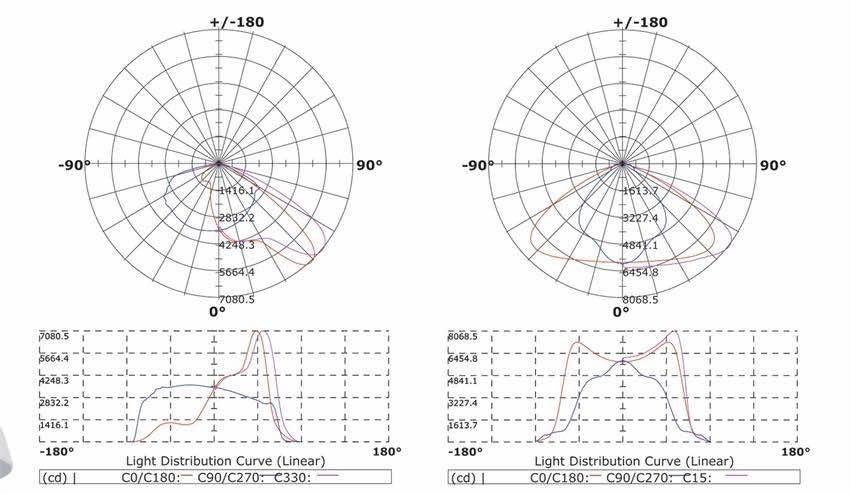

LIGHT DISTRBUTION CURVE

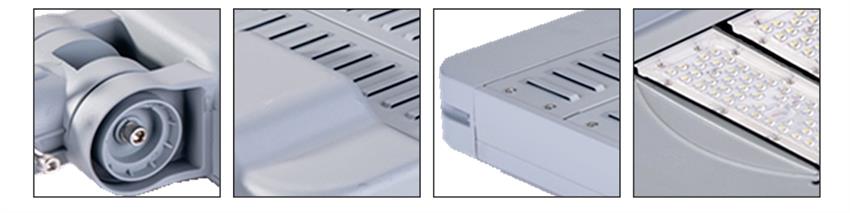

PRODUCT DETAILS
