TECHNICAL PARAMETER

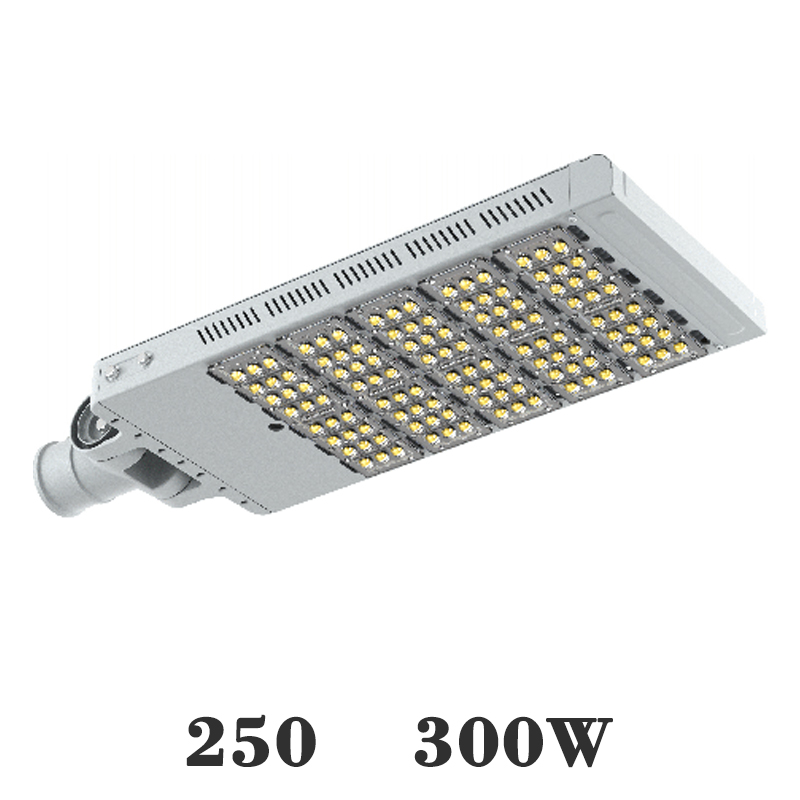

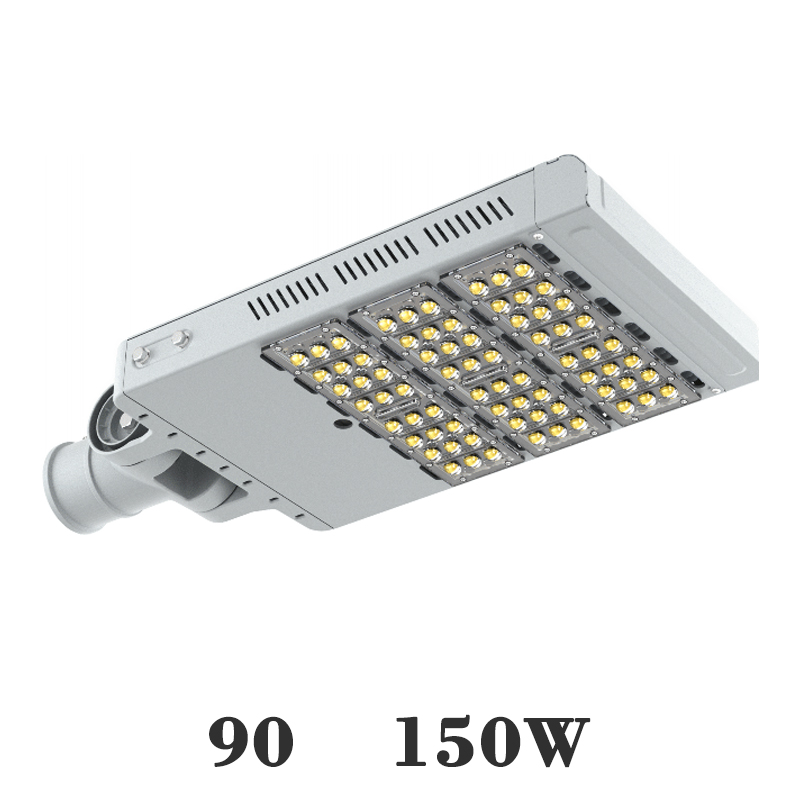

| Model | T1009-60-100W | T1009-90-150W | T1009-180-200W | T1009-250-300W |
| Power | 60-100W | 90-150W | 180-200W | 250-300W |
| Chip | NICHIA / LUMILEDS / CREE | |||
| Lumen | 130-140 lm/W | 130-140 lm/W | 130-140 lm/W | 130-140 lm/W |
| CRI | ≥80 | ≥80 | ≥80 | ≥80 |
| Beam angle | TypeⅡ / TypeⅢ / TypeⅤ | |||
| LED driver |   | |||
| Voltage(V) | 85-265V | 85-265V | 85-265V | 85-265V |
| LED QTY(pcs) | 112pcs | 168pcs | 224pcs | 336pcs |
| IP | 65 | 65 | 65 | 65 |

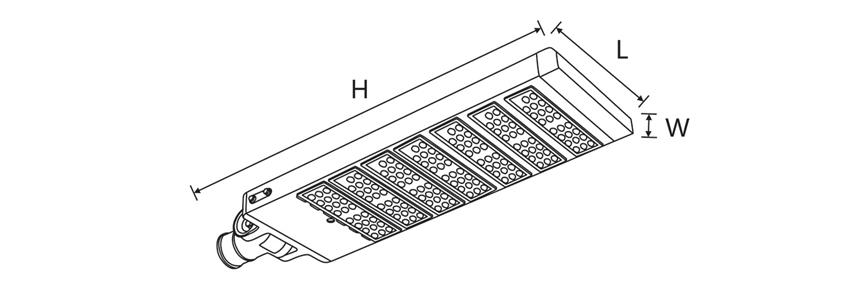

Size(mm) | L582.5*W304*H128 | L647.5*W304*H128 | L766.5*W304*H128 | L858*W304*H128 |

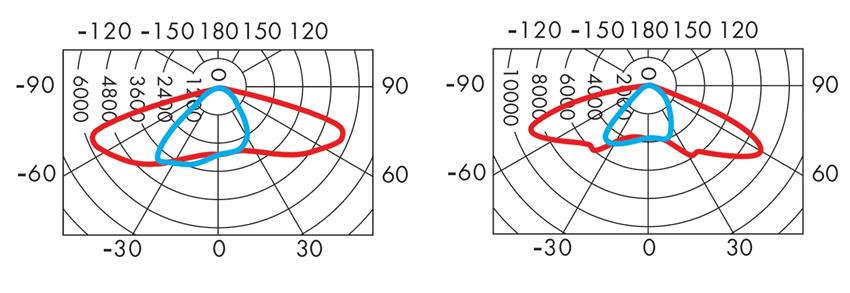

LIGHT DISTRBUTION CURVE

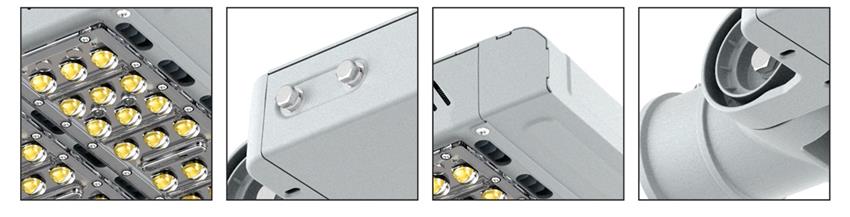

PRODUCT DETAILS
